0.8Ton Capacity Manual Lever Winch with 20M Lifting Height and 1 Year Warranty for Construction Hoist
Premium Products
0.8Ton Capacity Manual Lever Winch with 20M Lifting Height and 1 Year Warranty for Construction Hoist
1
2
3
4
Brand Name :Xinya
Place of Origin :Jiangsu, China
MOQ :1
Price :$50-100
Lifting Speed :Hand
Sling Type :Wire Rope
Power Source :Lever, Hand
Weight :800 kg
Max Lifting Load :0.8T
Max Lifting Height :20M
Lift Speed :manual
Capacity :0.8T
Rope Diameter :8.3 MM
Wire Rope Safety Factor :5 TIMES
Max Travelling Load :1200 KG
Net Weight :6.4 KG

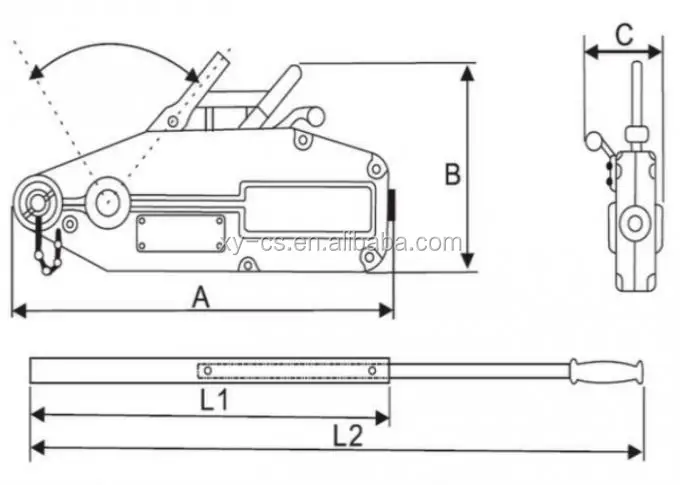

Max Outer Size A :426 MM
Max Outer Size B :238 MM
Max Outer Size C :64 MM
Contact Now

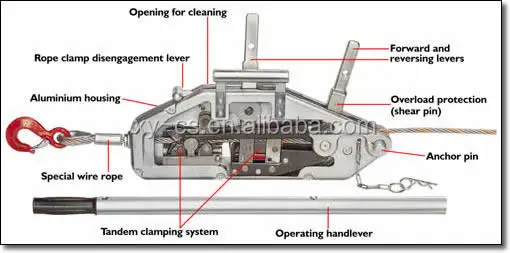

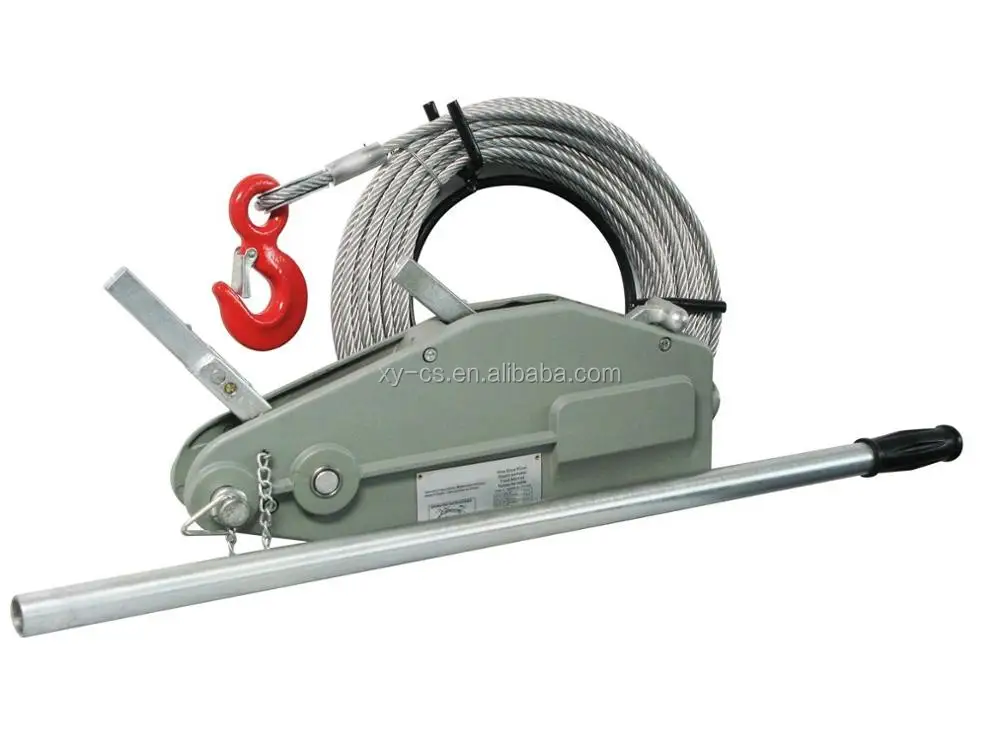

0.8Ton Tirfor Cable Puller, Manual Lever Winch
1. The TIRFOR lifting and pulling machines are safe, reliable and efficient. Suitable for many applications, TIRFOR machines are lever operated hoists using a separate wire rope. One-man operated, using a telescopic operating handle, they can work in any position and over any height of lift. They can replace conventional winches and other hoists for many applications.
2. The wire rope for the TIRFOR machine is not a standard production rope ; it has been developed specially to suit the TIRFOR machine.
3. Works in any position horizontal, vertical or angled.
4. Unlimited length of wire rope.
5. Increase the nominal capacity with multiple sheave blocks.
6. Whether lifting or lowering, the load is permanently controlled with the utmost precision; when operation stops, the loads is spread between the two jaw blocks.
7. Salety device to prevent overloading.
8. TU range approved lor man-riding applications.
9. Fast and easy installation.
10. Simple to leed in or remove the wire rope.
Use and Characteristic
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. 2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever. 3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end. 3) The hoist has low maintenance requirements and is easy service. 4) Overload protection ensures high personal safety when in operation. 5) Specially built-in shear pins can be replaced without removing the load.
