Manual Mild Steel Tirfor Machine with 0.8-5.4T Capacity and 20m Lifting Height for Construction Hoist
Premium Products
Manual Mild Steel Tirfor Machine with 0.8-5.4T Capacity and 20m Lifting Height for Construction Hoist
1
2
3
4
MOQ :1
Price :$450-500
Maximum Lifting Height :20 m
Rope Material :Steel
Rope Type :Steel Wire
Power Source :Manual, Hand
Product Type :Handle
Sling Type :Wire Rope
Lift Speed :Manual
Capacity :0.8-5.4T
Rated Capacity :800-5400 KG
Rope Diameter :8.3-20 MM
Wire Rope Safety Factor :5 TIMES
Max Travelling Load :1200-8000 KG
Net Weight :6.4-56 KG
Max Outer Size :426-930 MM
Rated Forward Travel :≥28-≥55 MM
Contact Now

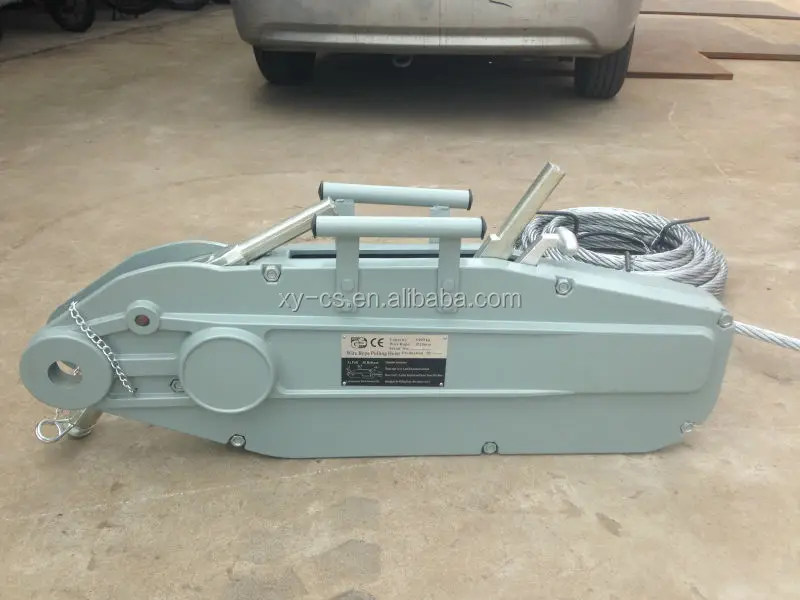

Manual Steel Tirfor Wire Rope Pulling and Lifting Machine for Construction and Industrial Use
Product Overview
The Manual Steel Tirfor Wire Rope Pulling and Lifting Machine is a versatile hand-operated device designed for lifting, pulling, and tensioning heavy loads in construction, industrial maintenance, and power line projects. Built with durable mild steel housing and precise mechanical gears, this portable tirfor provides reliable performance and high efficiency without the need for an external power source.
Definition
A Tirfor, also known as a manual wire rope hoist or hand winch, is a mechanical lifting and pulling device that uses a steel wire rope. The load is moved by a system of jaws that grip and advance the rope through the machine as the lever handle is operated. It allows users to lift, pull, or secure loads with precision and safety in multiple directions.

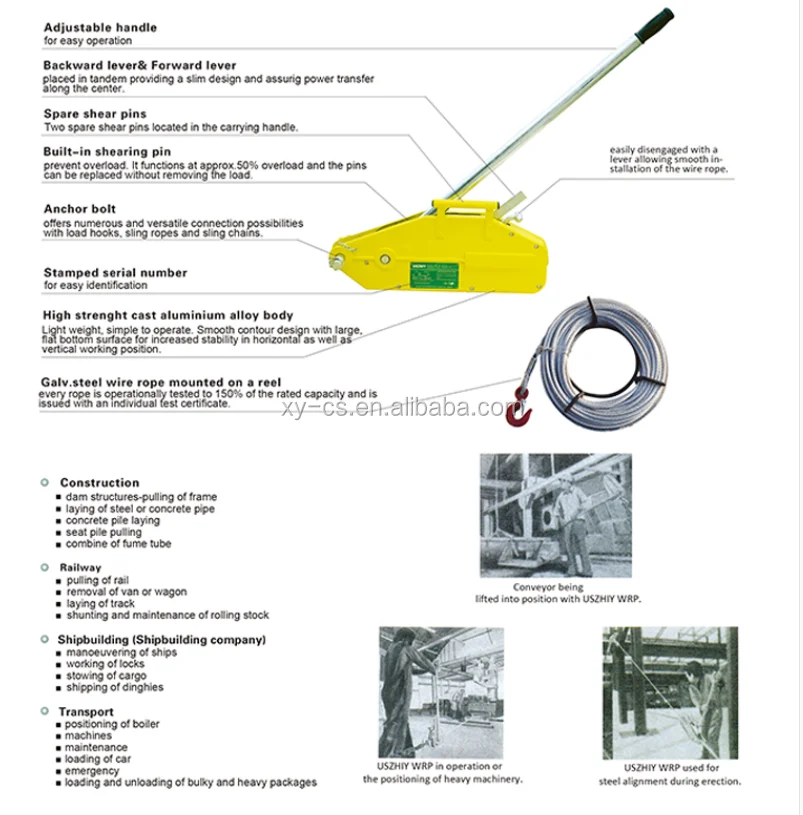

Key Features
Material: Heavy-duty mild steel body for durability
Operation: Manual hand lever design, no electricity required
Wire Rope Compatibility: Available in various lengths and diameters
Working Capacity: Options from 0.8T to 5T and above
Compact and Portable: Easy to carry and operate in confined areas
Reversible Operation: Allows lifting and pulling in both directions
Reliable and Energy-Saving: Works without electric or hydraulic power
Strong and Durable: Made from precision-machined steel for long service life
Easy Maintenance: Simple mechanism for quick inspection and repair
High Versatility: Suitable for lifting, pulling, tensioning, and securing loads
Safety Guaranteed: Stable control of load movement with mechanical locking
Applications
Construction and building site lifting works
Power line and tower erection projects
Industrial equipment maintenance and installation
Vehicle recovery and load positioning
Shipyard, pipeline, and workshop operation

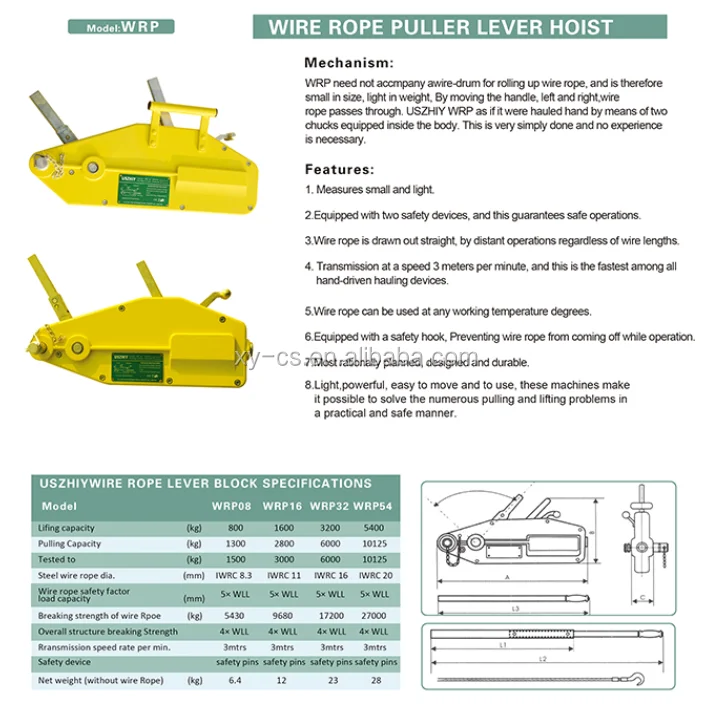

Technical Data
Model item
VIT-800
VIT-1600
VIT-3200
VIT5400
Rated forward hand power(N)
341
438
438
745
Rated capacity(KG)
800
1600
3200
5400
Rated forward travel(MM)
≥52
≥55
≥28
≥30
Rope diameter(MM)
8.3
11
16
20
Wire rope safty factor load capacity(TIMES)
5
5
5
5
Max travelling load(KG)
1200
2400
4000
8000
Net weight(KG)
6.4
12
28
56
Max outer size(MM) A
426
545
660
930
B
238
284
325
480
C
64
97
116
152
L1(CM)
80
80
68
L2(CM)
80
120
120
112
Packing (L*W*H)(CM)
43*6.4*24
54.5*9.7*29
66*12*35
110*110*73
FAQ
Q1: What is the difference between a Tirfor and a traditional hand winch? A1: A Tirfor moves the wire rope through the machine using clamping jaws, while a winch winds the rope onto a drum. The Tirfor allows unlimited rope length and precise control.
Q2: What sizes and capacities do you offer? A2: We provide models from 0.8T to 5T, with optional wire rope lengths ranging from 10m to 50m or more.
Q3: Can it be used both horizontally and vertically? A3: Yes, the Tirfor can lift vertically or pull horizontally depending on the job requirement.
Q4: Is customization available? A4: Yes, we can customize capacity, rope length, and handle type according to client needs.
