20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

  • 1
  • 2

Model Number : VIT

Brand Name : Changshu Xinya

Place of Origin : Jiangsu, China

Certification : ISO

MOQ : 5

Capacity : 0.8-5.4T

Sling Type : Wire Rope

Max Lifting Height : 20M

Weight : 6.4-56KG

Rated forward hand power : 341-745N

Rated capacity : 800-5400KG

Rated forward travel : ≥28-≥55MM

Rope diameter : 8.3-20MM

Wire rope safety factor : 5TIMES

Max travelling load : 1200-8000KG

Max outer size A : 426-930MM

Max outer size B : 238-480MM

Max outer size C : 64-152MM

Packing size : 43*6.4*24 - 110*110*73CM

Power Source : Hand, Lever

Contact Now

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

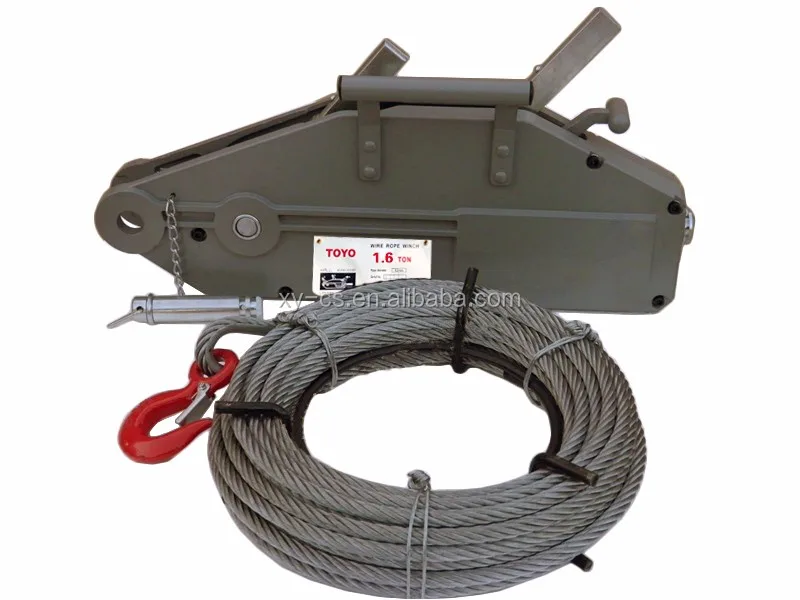

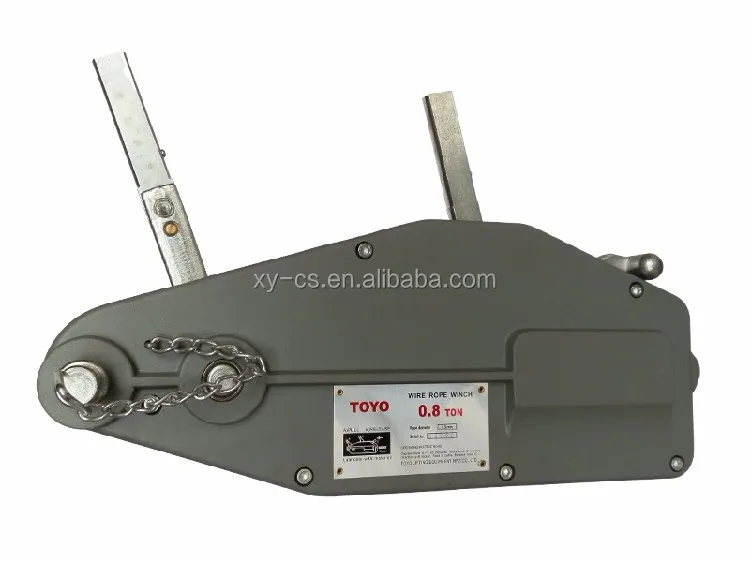

20 Meters Long Steel Wire Rope Manual Hoist Winch

Use and Characteristic

1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.

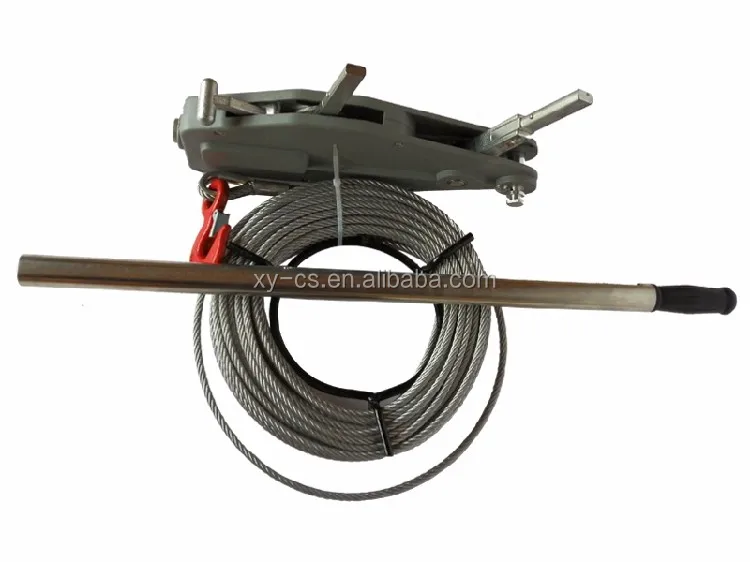

2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.

,Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction

Model item

VIT-800

VIT-1600

VIT-3200

VIT5400

Rated forward hand power(N)

341

438

438

745

Rated capacity(KG)

800

1600

3200

5400

Rated forward travel(MM)

≥52

≥55

≥28

≥30

Rope diameter(MM)

8.3

11

16

20

Wire rope safty factor load capacity(TIMES)

5

5

5

5

Max travelling load(KG)

1200

2400

4000

8000

Net weight(KG)

6.4

12

28

56

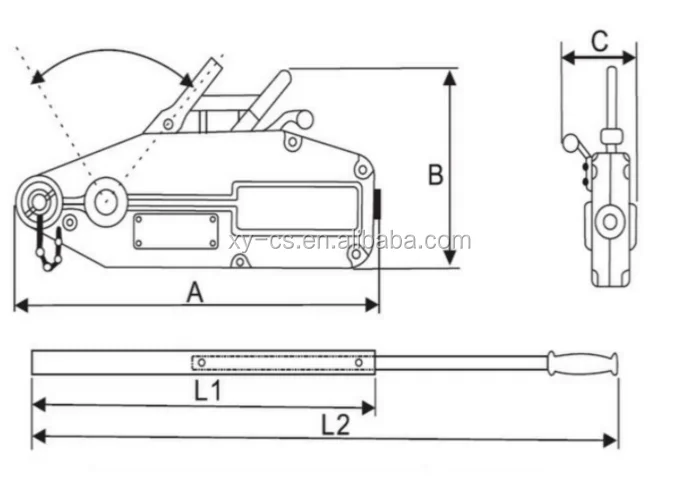

Max outer size(MM) A

426

545

660

930

B

238

284

325

480

C

64

97

116

152

L1(CM)

80

80

68

L2(CM)

80

120

120

112

Packing (L*W*H)(CM)

43*6.4*24

54.5*9.7*29

66*12*35

110*110*73

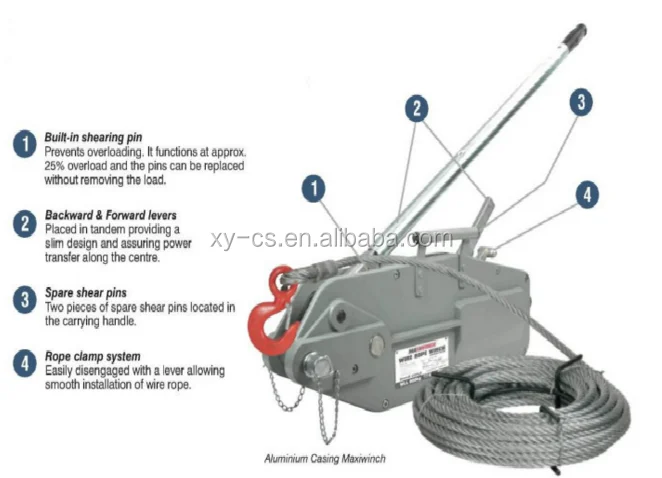

Structure

20 Meters Long Steel Wire Rope Manual Hoist Winch with 0.8-5.4T Capacity for Power Construction
