1.6-5.4ton Hand Wire Rope Hoist with 20M Lifting Height and 800-5400KG Capacity for Construction and Power Applications

Name: 1654ton Hand Wire Rope Hoist with 20M Lifting Height and 8005400KG Capacity for Construction and Power Applications
Brand: XINYA
Price: 1 USD

Buy cheap 1.6-5.4ton Hand Wire Rope Hoist with 20M Lifting Height and 800-5400KG Capacity for Construction and Power Applications product

Model Number : VIT

Brand Name : XINYA

Place of Origin : Jiangsu, China

MOQ : 1

Capacity : 800-5400KG, 0.8-5.4T

Max Lifting Load : 5.4T

Max Lifting Height : 20M

Sling Type : Wire Rope

Lift Speed : manual

Rated Forward Hand Power : 341-745N

Rated Forward Travel : ≥28-55MM

Rope Diameter : 8.3-20MM

Wire Rope Safety Factor : 5 TIMES

Max Travelling Load : 1200-8000KG

Net Weight : 6.4-56KG

Max Outer Size A : 426-930MM

Max Outer Size B : 238-480MM

Max Outer Size C : 64-152MM

Packing Dimensions : 43*6.4*24 - 110*110*73CM

Contact Now

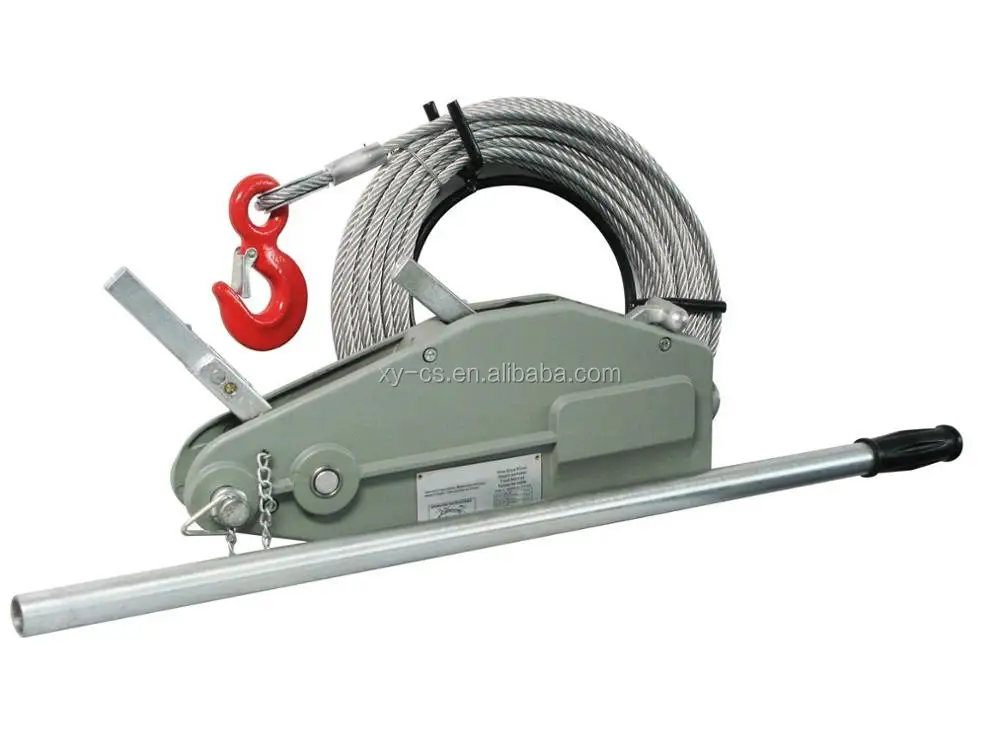

1.6-5.4ton Hand Wire Rope Pulling Hoist or Tirfor

Use and Characteristic

1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.

Technical Data

Model item	VIT-800	VIT-1600	VIT-3200	VIT5400
Rated forward hand power(N)	341	438	438	745
Rated capacity(KG)	800	1600	3200	5400
Rated forward travel(MM)	≥52	≥55	≥28	≥30
Rope diameter(MM)	8.3	11	16	20
Wire rope safty factor load capacity(TIMES)	5	5	5	5
Max travelling load(KG)	1200	2400	4000	8000
Net weight(KG)	6.4	12	28	56
Max outer size(MM) A	426	545	660	930
B	238	284	325	480
C	64	97	116	152
L1(CM)		80	80	68
L2(CM)	80	120	120	112
Packing (LWH)(CM)	436.424	54.59.729	661235	11011073
